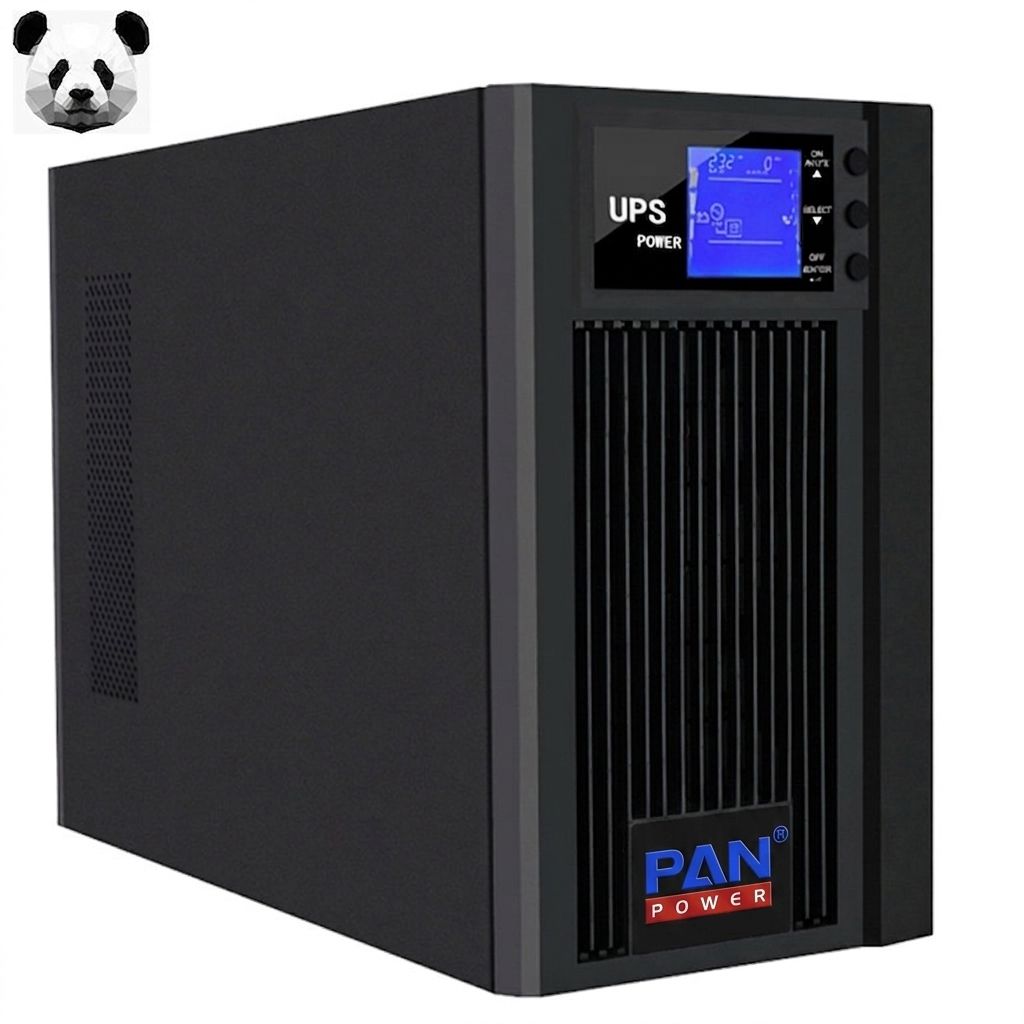

The PanPower Online UPS 3000 VA is designed for reliable power protection with a single-phase L+N+G input. It operates within a voltage range of 90 to 300 VAC and a frequency range of 40 Hz to 70 Hz, with a power factor of ≥ 0.99. The output phase is also single-phase L+N+G, providing a rated voltage of 220/230/240 VAC with a voltage accuracy of ± 1%. The frequency is 50/60±4 Hz when synchronized with mains and 50/60 Hz±0.1% in fixed frequency mode.
The UPS delivers a pure sine wave output, with a Total Harmonic Distortion (THD) of less than 2% for linear loads and less than 6% for nonlinear loads. It can handle overloads for 10 minutes at 105% to 125% of rated loads, 1 minute at 125% to 150% of rated loads, and 0.5 seconds at more than 150% of rated loads. The efficiency is 93% in AC mode and 91% in battery mode.
The battery system includes six 12V 7Ah batteries, operating at 72 VDC, with a charge current of 1A. The UPS has a tower-type design and features an LCD+LED display that shows input/output voltage, frequency, load percentage, working mode, and UPS status. It includes a standard RS232 communication interface and an intelligent slot for SNMP, ensuring easy monitoring and control.
